Which wellboard type is right for my project?
Our sustainable wood-based material wellboard is available in four different profile types and in different formats in each case.
You will always receive wellboard in its untreated form. This means you can design the surface to suit your taste – or, of course, simply leave it untreated.
Get to know wellboard minimum, medium, maximum and gamma 300 in detail and learn everything about the technical properties of the different profiles here.
Want to hold wellboard in your own hands?
wellboard minimum
Artikel – No.: 5000
Material: 100% cellulose (FSC). A wave form is pressed into a kraftplex® raw board under heat and pressure. No addition of adhesives.
Width standard roll: 200 cm
Length standard roll: 440 cm
Height: 4,5 mm
Material thickness: 1.0 mm
Tolerances: l: ± 20 cm, w: ± 5 cm, h: ± 1.0 mm, s: ± 15%
Weight: ~1,4 kg/m2
Other stock formats: For prototypes and sample setups also available in 56 x 34 cm and 150 x 200 cm format.
Delivery time: 1-2 weeks for stock items
Packaging: 22 x 22 x 206 cm, ~15.3 kg, per roll
Processing: wellboard can be sawn, sanded, drilled and painted like standard wood materials.
Please also refer to our wellboard processing instructions.
Please carry out preliminary tests.
Fire protection: wellboard must be impregnated to comply with DIN 4102-B1.

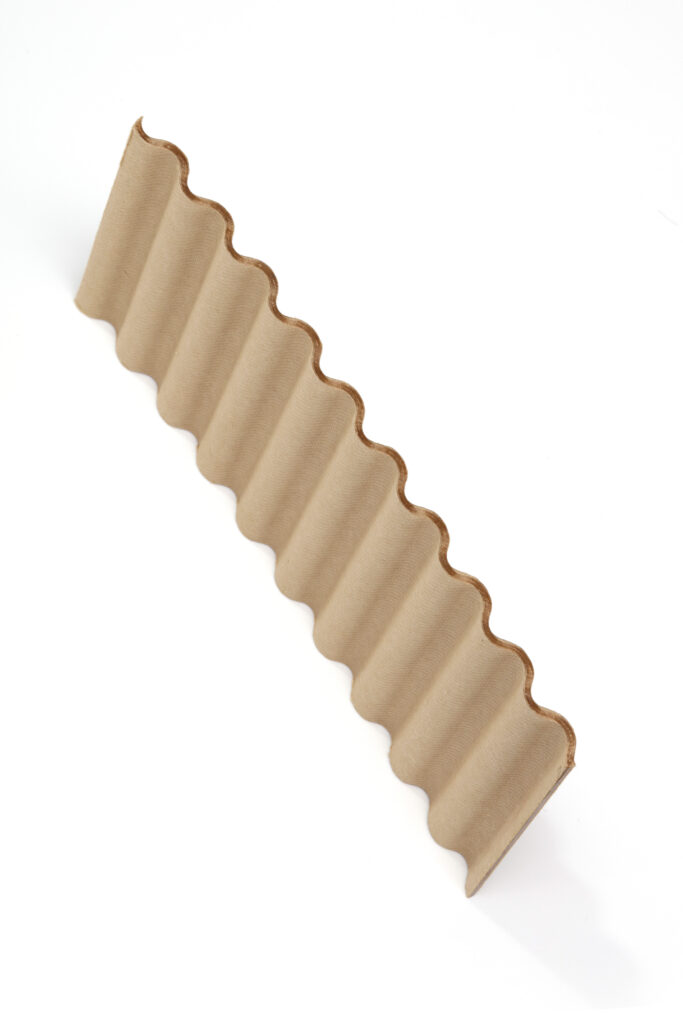

wellboard medium
Artikel – No.: 5100
Material: 100% cellulose (FSC). A wave form is pressed into a kraftplex® raw board under heat and pressure. No addition of adhesives.
Width standard roll: 200 cm
Length standard roll: 520 cm
Height: 7 mm
Material thickness: 2.0 mm
Tolerances: l: ± 20 cm, w: ± 5 cm, h: ± 1.0 mm, s: ± 15%
Weight: ~2,7 kg/m2
Other stock formats: Also available in 56 x 34 cm and 150 x 200 cm for prototypes and sample setups.
Delivery time: 1-2 weeks for stock items
Packaging: 32 x 31 x 208 cm, ~33.1 kg, per roll
Processing: wellboard can be sawed, sanded, drilled and painted like standard wood materials.
Please also refer to our wellboard processing instructions.
Please carry out preliminary tests.
Fire protection: wellboard must be impregnated to comply with DIN 4102-B1.
wellboard maximum
Artikel – No.: 5200
Material: 100% cellulose (FSC). A wave form is pressed into a kraftplex® raw board under heat and pressure. No addition of adhesives.
Width standard roll: 315 cm
Length standard roll: 520 cm
Height: 8,5 mm
Material thickness: 1.5 mm
Tolerances: l: ± 20 cm, w: ± 5 cm, h: ± 1.0 mm, s: ± 15%
Weight: ~2,1 kg/m2
Other stock formats: Also available in 56 x 34 cm and 150 x 200 cm for prototypes and sample setups.
Delivery time: 1-2 weeks for stock items
Packaging: 32 x 31 x 321 cm, ~42.4 kg, per roll
Processing: wellboard can be sawn, sanded, drilled and painted like standard wood-based materials.
Please also refer to our wellboard processing instructions.
Please carry out preliminary tests.
Fire protection: wellboard must be impregnated to comply with DIN 4102-B1.

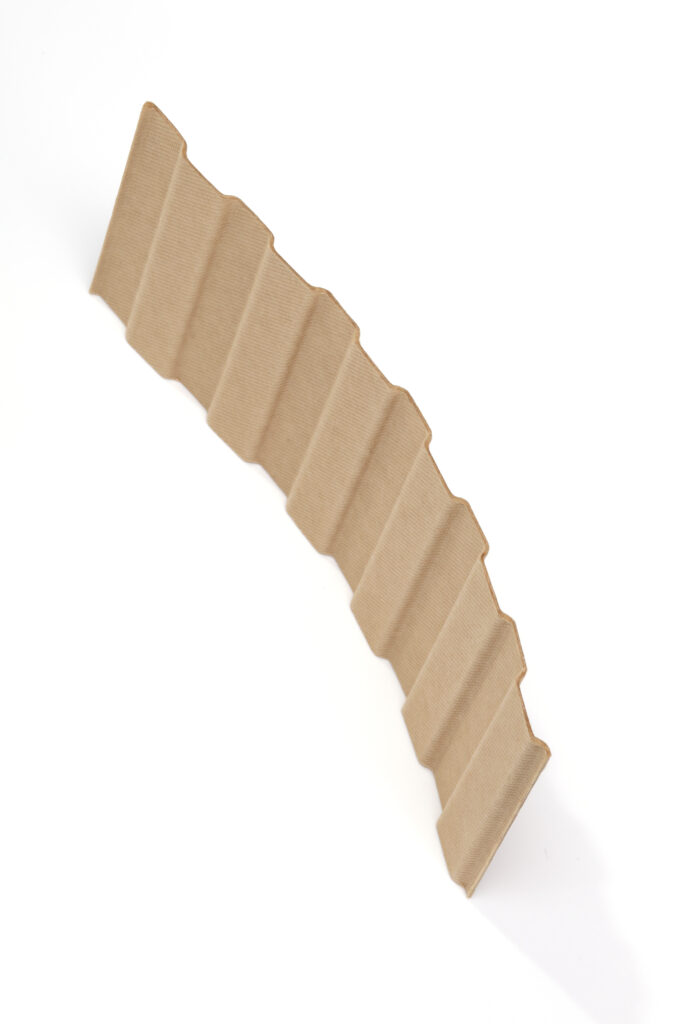

wellboard gamma 300
Artikel – No.: 7240
Material: 100% cellulose (FSC). A wave form is pressed into a kraftplex® raw board under heat and pressure. No addition of adhesives.
Width standard roll: 200 cm
Length standard roll: 530 cm
Height: 4,0 mm
Material thickness: 1.0 mm
Tolerances: l: ± 20 cm, w: ± 5 cm, h: ± 1.0 mm, s: ± 15%
Weight: ~1,25 kg/m2
Other stock formats: For prototypes and sample setups also available in 56 x 34 cm and 150 x 200 cm format.
Delivery time: 1-2 weeks for stock items
Packaging: 32 x 31 x 208 cm, ~18.8 kg, per roll
Processing: wellboard can be sawed, sanded, drilled and painted like standard wood materials.
Please also refer to our processing instructions.
Please carry out preliminary tests.
Fire protection: wellboard must be impregnated to comply with DIN 4102-B1.
